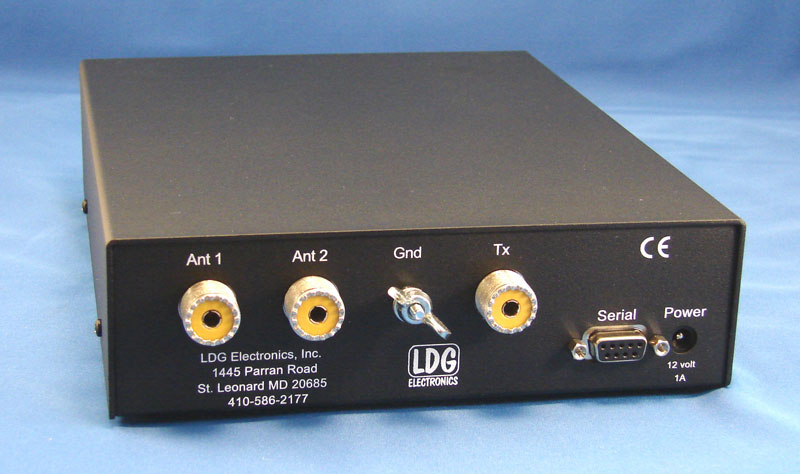

LDG Electronics AT-200PC
| Type: |
Automatic Antenna Tuner |
| Frequency Range: |
1.8-54 MHz |
| Voltage: |
11-16 VDC |
| Current Drain: |
Max 750 mA |
| Max feed through RF power: |
5 to 250 watts SSB and CW. (100 watts on 6M) |
| Dimensions (W*H*D): |
Enclosure: 8.5 x 6.0 x 2.0 inches |
| Weight: |
2 pound |
| Manufactured: |
USA, 200x-200x |
| Other: |
16,000 3D memories for instantaneous band changing
Two position antenna switch with memories for four antennas on each position.
Will match 6-1000 ohms, 6 to 4000 ohms with optional 4:1 Balun (LDG RBA 4-1)
Price in 2007: $259 |
| Related Documents: |
Manual (649 Kb) |
 |
